Walterscheid Adaptor plate - 770KUP329-45/30 | Rail width: 330 mm | Guide width: 30 mm | Detent pin Ø: 20 mm | Load capacity: 2800 kg | D-value: 89,3 kN | Hole pattern: 140 x 80 mm | Hole: M20 mm | Colour: Black | Description: The coupling plate is a height-adjustable
€969,66
€782,52Incl. VAT
Walterscheid Adaptor plate - 770KUP329-45/30 | Rail width: 330 mm | Guide width: 30 mm | Detent pin Ø: 20 mm | Load capacity: 2800 kg | D-value: 89,3 kN | Hole pattern: 140 x 80 mm | Hole: M20 mm | Colour: Black | Description: The coupling plate is a height-adjustable
Walterscheid Adaptor plate - 770KUP329-45/30 | Rail width: 330 mm | Guide width: 30 mm | Detent pin Ø: 20 mm | Load capacity: 2800 kg | D-value: 89,3 kN | Hole pattern: 140 x 80 mm | Hole: M20 mm | Colour: Black | Description: The coupling plate is a height-adjustable
€969,66
€782,52Incl. VAT
In stock
€646,71
Excl. VAT
Rail width: 330 mm. Guide width: 30 mm. Detent pin Ø: 20 mm. Load capacity: 2800 kg. D-value: 89,3 kN. Hole pattern: 140 x 80 mm. Hole: M20 mm. Colour: Black. Description: The coupling plate is a height-adjustable sliding plate that can only be operated i
Read more.
50.000+ technical products
Worldwide shipping*
30-day return policy
Rating 4.7/5 (420 reviews)
Product description

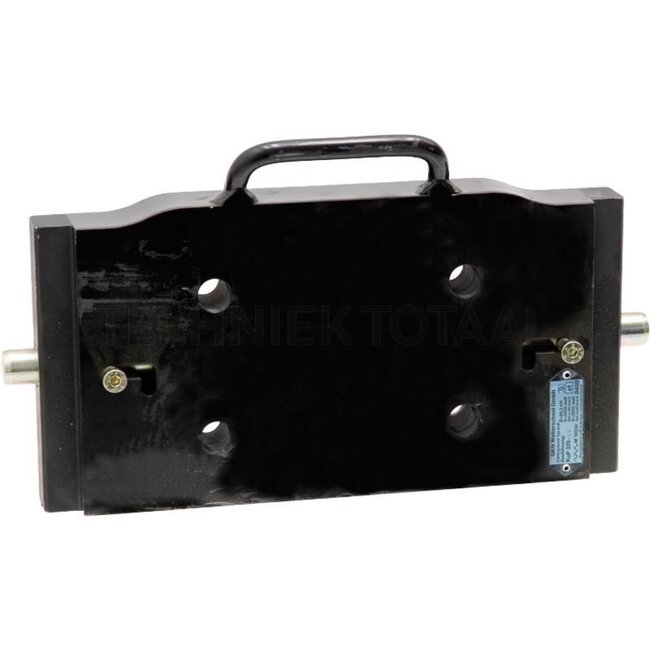

Adaptor plate
Rail width (mm): 330
Guide width (mm): 30
Detent pin Ø (mm): 20
Load capacity (kg): 2800
D-value (kN): 89,3
Hole pattern (mm): 140 x 80
Hole (mm): M20
Colour: Black
Description: The coupling plate is a height-adjustable sliding plate that can only be operated in hitch supports with locking rails. It is prepared for attaching flange couplings or other connecting devices with a flange. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: height-adjustable, forged material, suitable for a wide range of couplings that can be flange-mounted
Assembly notes: The vehicle part support distance (from the centre of the coupling plate to the centre of the coupling point) may be up to 222 mm.
Passend voor:
Case IH: 8005066, Serie Magnum, Magnum 225 (1/06-), Magnum 250 (1/06-), Magnum 280 (1/06-), Magnum 310 (1/06-), Magnum 335, Serie Magnum Tier 4, Magnum 235 Tier 4a, Magnum 235 Tier 4a CVT, Magnum 260 Tier 4a, Magnum 260 Tier 4a CVT, Magnum 290 Tier 4a, Magnum 290 Tier 4a CVT, Magnum 315 Tier 4a, Magnum 315 Tier 4a CVT, Magnum 340 Tier 4a, Magnum 340 Tier 4a CVT/CVX, Magnum 340 Tier 4b CVT/CVX (4/14-), Serie MX, MX 180 Magnum, MX 200 Magnum, MX 210 Magnum, MX 220 Magnum, MX 230 Magnum, MX 240 Magnum, MX 255 Magnum, MX 270 Magnum, MX 285 Magnum
