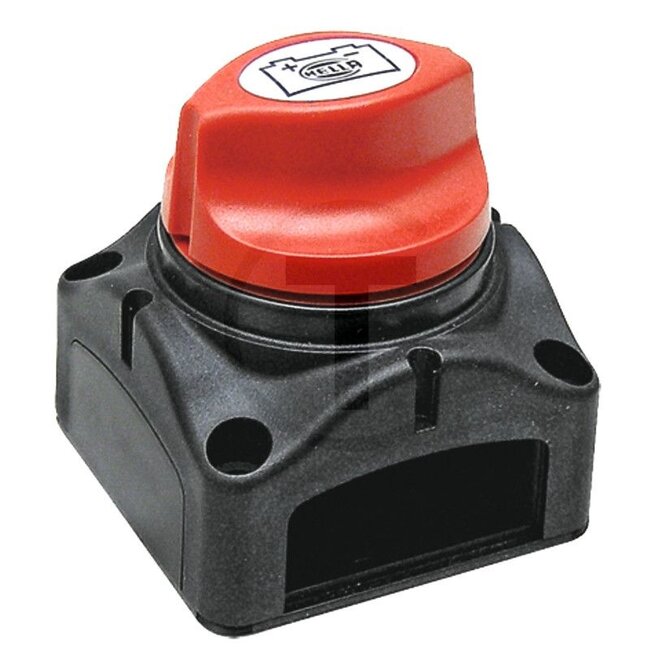

Battery cut-off switch

Operated by turning: Make contact

Version: Rotary switch for installation and mounting Housing and button made of plastic Several switches can be connected to one another to save space by removing the side panel. The red button can only be removed in a 45° anticlockwise position. Resistant to sea water Connection: 2 screws Ø 10 mm Protection class: IP56 according to DIN/ISO 40 050 Power rating: 225 A (continuous load) at 12/24 V Max. 1000 A (10 sec.) at 12/24 V
