Product description

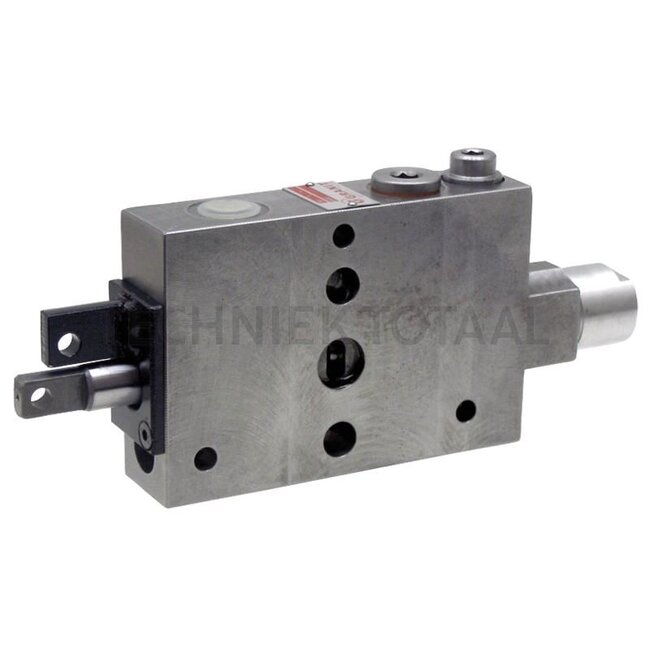

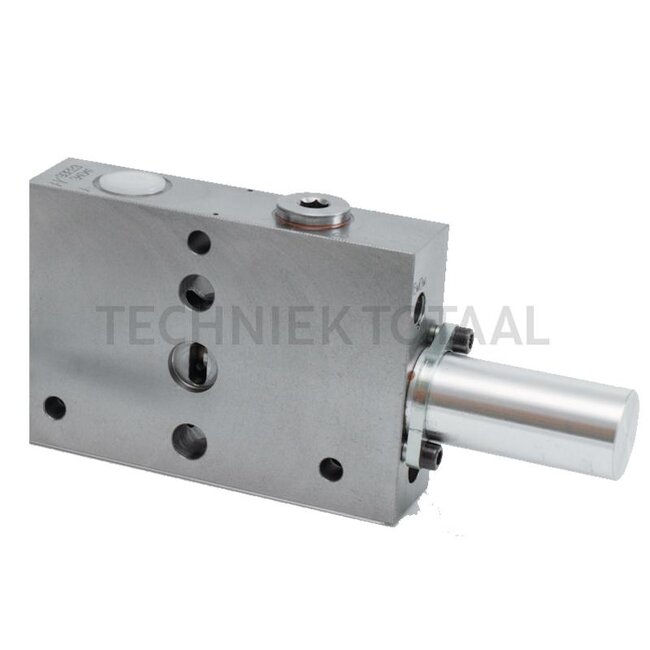

Control unit Can be switched between single- and double-acting, with float position and limit stop
Technical data: Max. operating pressure: 220 bar Nominal flow rate: max. 70 l/min Tightening torque: 30 Nm Connections: M22 x 1.5 Dimensions: 275 x 40 x 110 mm
Connection thread: M22 x 1,5

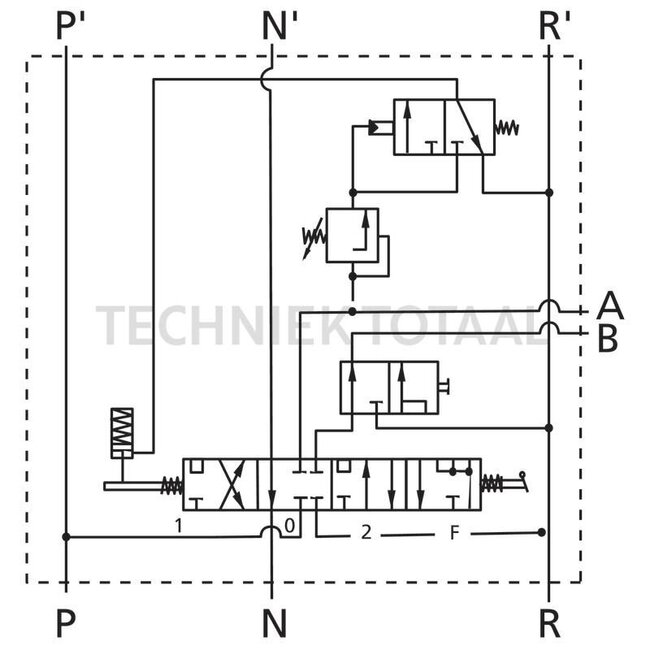

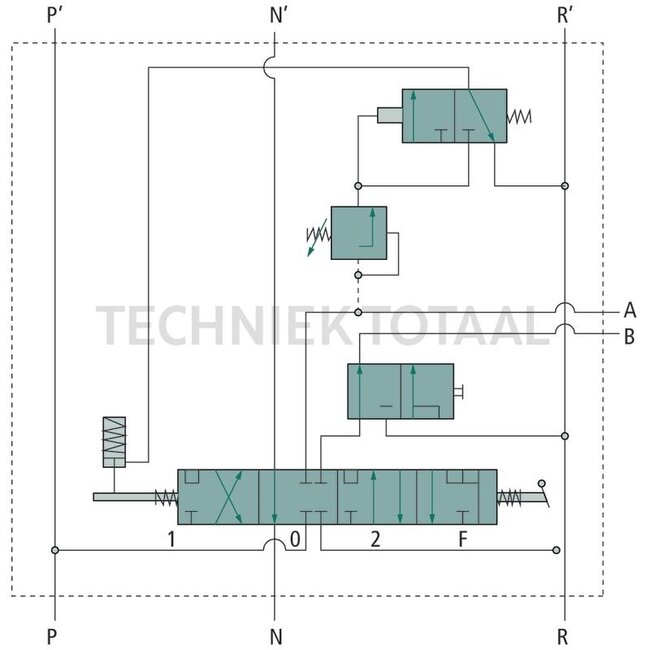

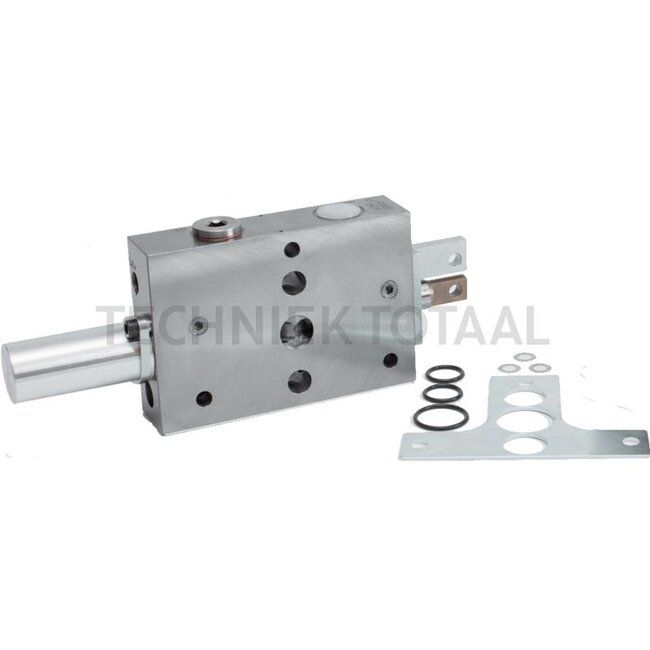

Description: This auxiliary control unit is a four-position device that can be used for double- and single-acting lifting cylinders. It has gate-sealed cylinder connections A and B. This means extremely low leakage rates are permissible at high loads. The device has a detent position in the lifting position that is equipped with an automatic hydraulic limit switch, and that releases at 180 bar. When switching via the lowering position, the locked float position is engaged. This is not unlocked hydraulically (consumer connections A and B are connected together to the return line). The float position can be used on double- and single-acting lifting cylinders as locked lowering position. The auxiliary control unit can be switched from double- to single-acting and vice versa. This is also possible during operation. The valve can be mounted on the left or right side using a freely positionable sealing plate.
Operating pressure max. (bar): 220
Fixing bolt tightening torque Nm: 30
Nominal flow rate (l/min.): 70
Passend voor:
Case IH: 19124, Serie 42, 4220, 4230, 4240, Serie B-Familie, 743 XL, 844, 856 XL, Serie C-Familie, 956 XL, 1055, 1056 XL, Serie Compact, C 55, C 64, C 70, Serie CS, CS 48 (2/97-1/01), CS 58 (2/97-1/01), CS 68 (3/99-3/04), CS 68 (6/97-3/99), CS 75 (3/99-3/04), CS 75 (6/97-3/99), CS 78 (1/99-1/04), CS 78 (3/96-1/99), CS 86 (1/99-1/04), CS 86 (3/96-1/99), CS 94 (1/99-1/04), CS 94 (3/96-1/99), CS 110 (4/00-7/03), CS 110 (4/96-4/00), CS 120 (4/00-7/03), CS 120 (4/96-4/00), CS 130 (4/00-7/03), CS 130 (4/96-4/00), CS 150 (4/00-7/03), CS 150 (4/96-4/00), Serie D-Familie, 1255 XL, 1455 XL
Steyr: 19124, 1397730222, Serie 900, 942, 948, 955, 970, Serie 9000, 9078, 9094, Serie M 900, M 958 (2/97-1/01), M 968 (3/99-3/04), M 968 (6/97-3/99), M 975 (3/99-3/04), M 975 (6/97-3/99), Serie M 9000, M 9083 (9/94-1/99)
