Product description

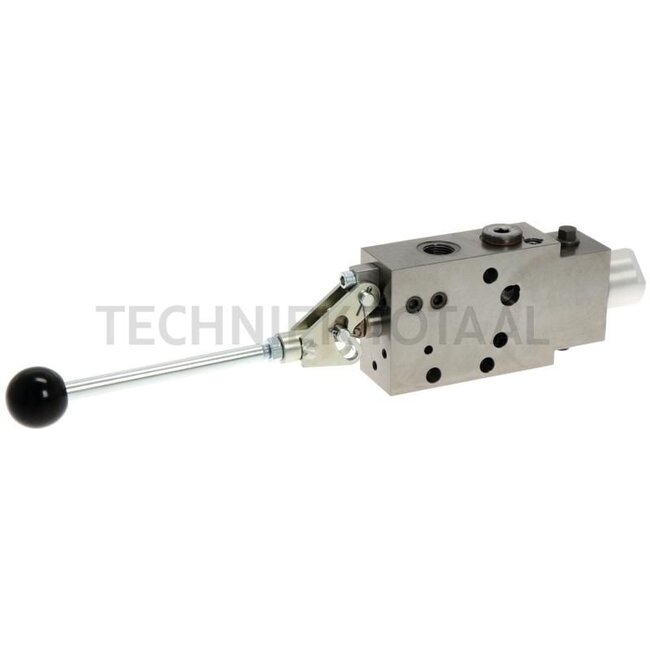

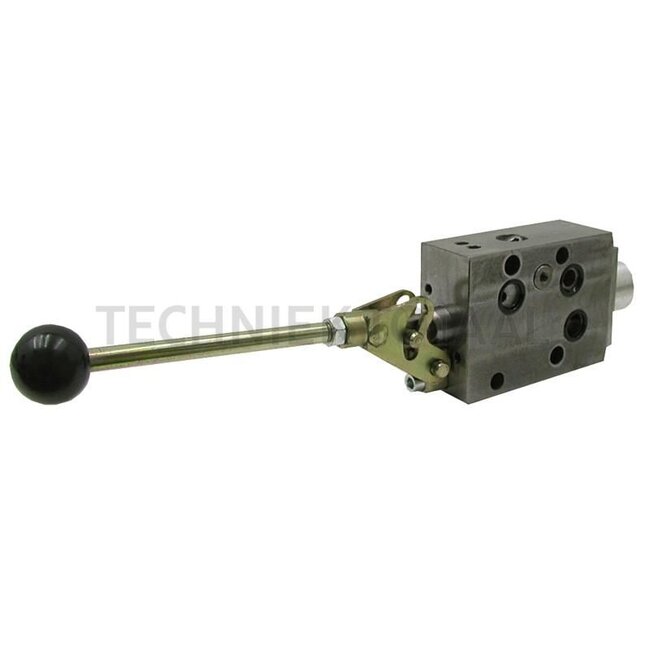

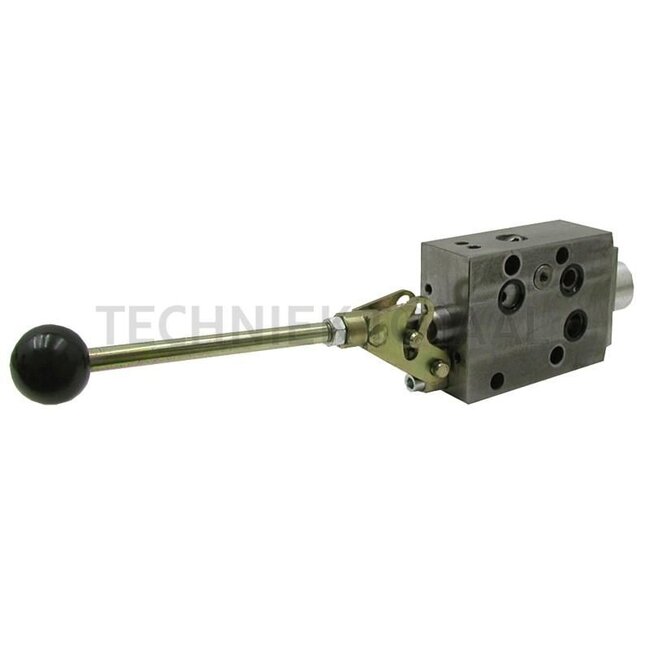

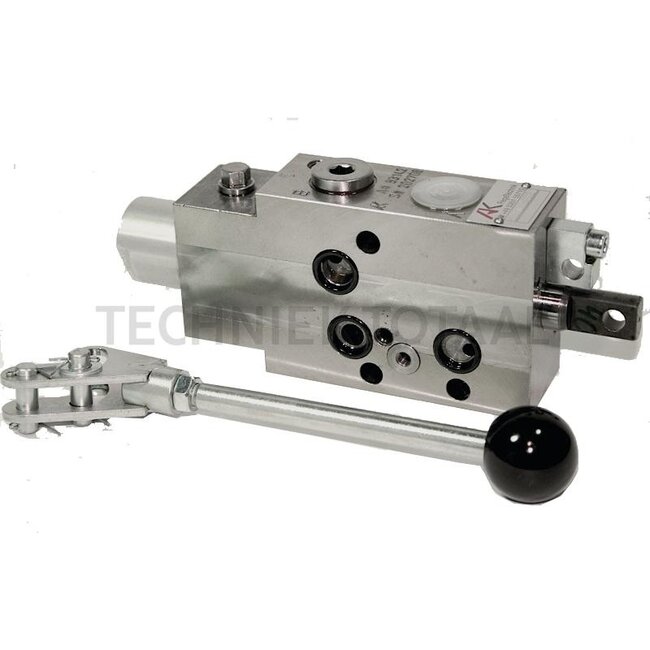

Control unit optionally switchable between sa and da, with float position with detent and lever

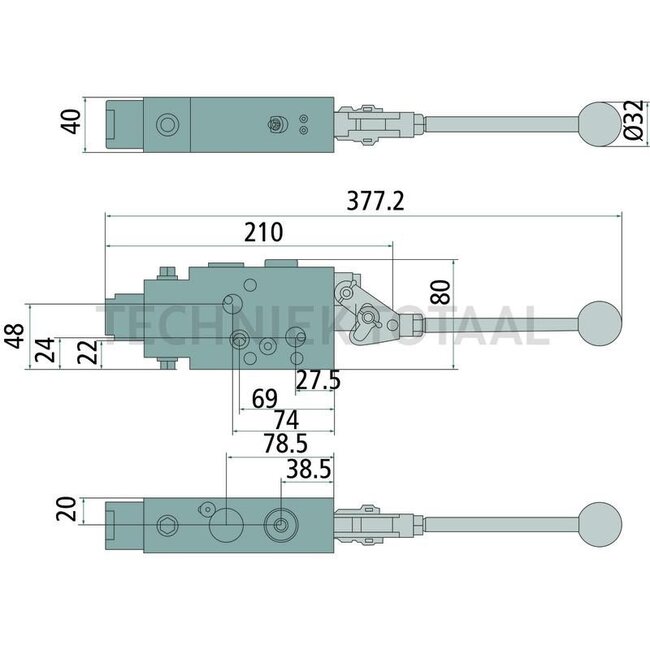

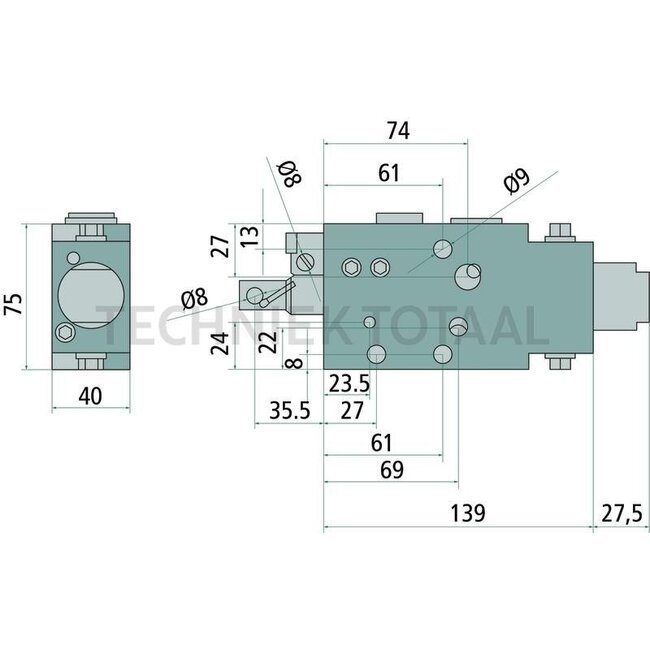

Technical data: Max. operating pressure: 210 bar Nominal flow rate: max. 40 l/min. Tightening torque: 30 Nm Connections: M18 x 1.5 Dimensions: 180 x 40 x 75 mm
Connection thread: M18 x 1,5

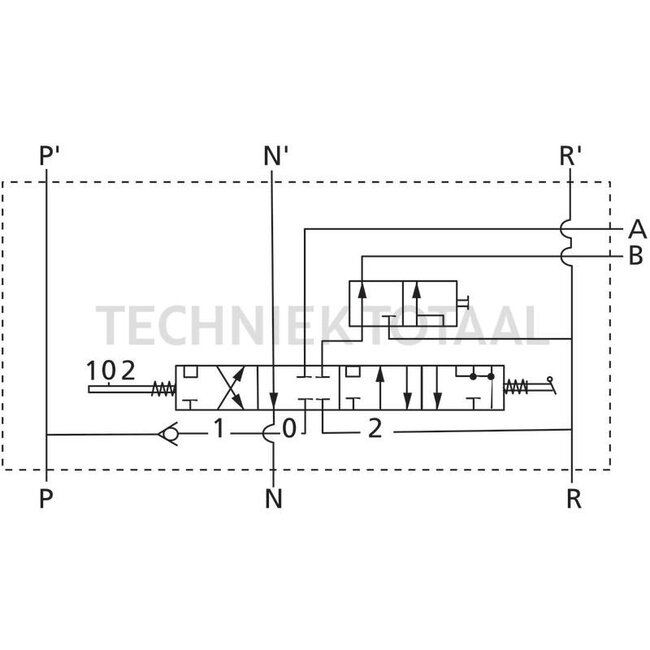

Description: This auxiliary control unit is a four-position device that can be used for double- and single-acting lifting cylinders. It has gate-sealed consumer connections A and B. This means that extremely low internal leakage is permitted with high loads. When switching via the lowering position, the locked float position is engaged. This cannot be unlocked hydraulically (consumer connections A and B are connected to the return line). The float position can be used on double- and single-acting lifting cylinders as locked lowering position. The auxiliary control unit can be switched from double- to single-acting and vice versa. This is also possible during operation. Before installation, be sure to check the length of the valve. Care must be taken to ensure that this valve does not rest on the steering knuckle.
Operating pressure max. (bar): 220
Fixing bolt tightening torque Nm: 30
Nominal flow rate (l/min.): 40
Passend voor:
Case IH: 19082, 0523602012, 0523602026, Serie A-Familie, 353, 383, 423, 433, 440, 453, 533, 540, 633, 640, 733, 740, 833, 840, 940 (1/90-12/92), Serie B-Familie, 523, 553, 554, 644, 654, 743, 743 XL, 744, 844, 844 S, 844 XL, Serie C-Familie, 955, 955 XL, 1055, 1055 XL, Serie D-Familie, 1255, 1255 XL, Serie D-Linie, 323, D 320, D 322, D 324, D 326, D 430, D 432, D 436, D 439, D 440
