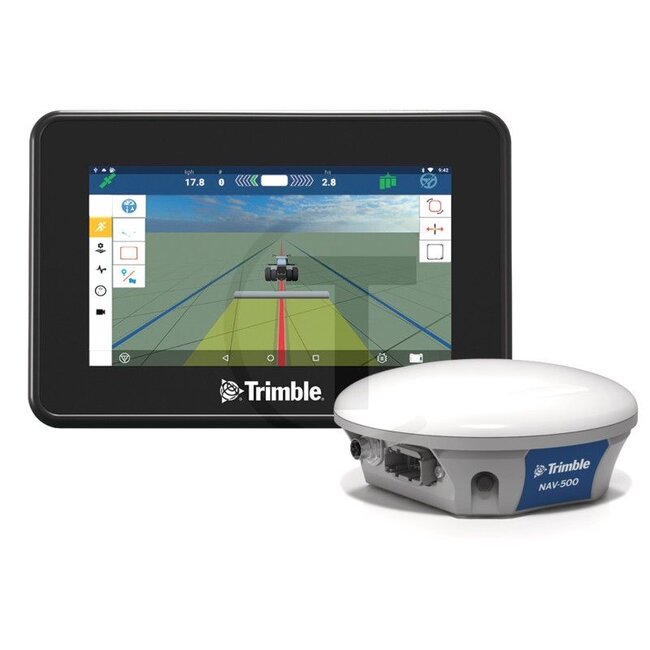

Display GFX-350 (including Nav-500) Incl. holder, power cable, receiver and connection cable, without ISOBUS activations
Version: Trimble® GFX-350™ is the latest display from Trimble Agriculture.
It is Android™-based and easy to use.
This cost-effective, functional solution is easy to install and opens the doors to automatic steering and application control.
Thanks to Bluetooth® and WiFi™ connectivity, as well as ISOBUS compatibility, all agricultural applications can be controlled and completed throughout the year regardless of the brand.
Control of up to 2 channels and 24 boom sections
Technical data, display:
• Resolution: 1024 x 600
• Size: colour display with 17.8 cm diagonal
• Brightness: 500 Nit max.
• Processor: Quad-Core iMx6 PLUS @ 1 GHz
• Memory (eMMC/RAM): 16 GB / 1 GB
• Operating system: Android 6.0
• Internal GNSS: no
• Dimensions: L 200.6 mm x W 132.3 mm x D 48 mm (on the terminal strip)
• Weight: 1 kg
• Protection class: IP66
• Docking station: no

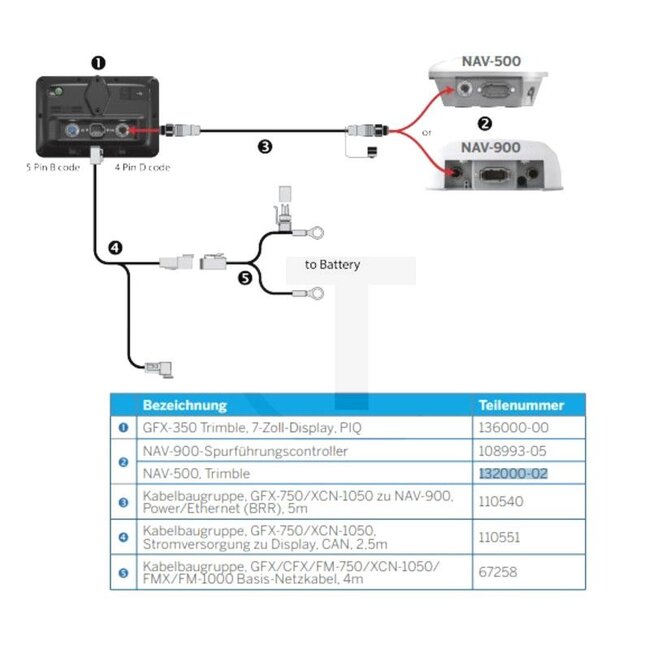

Connections:
• Current/CAN: Deutsch DT15-6p
• USB (1 rear)
• WiFi: integrated 802.11b/g/n 2.4 GHz
• Bluetooth: 4.2Display: GFX-350 (17.8 cm)Accuracy: 2.5 cm (RTX): NoAccuracy 10-15 cm (RTX): NoAccuracy 20-30 cm (RTX): EGNOS
