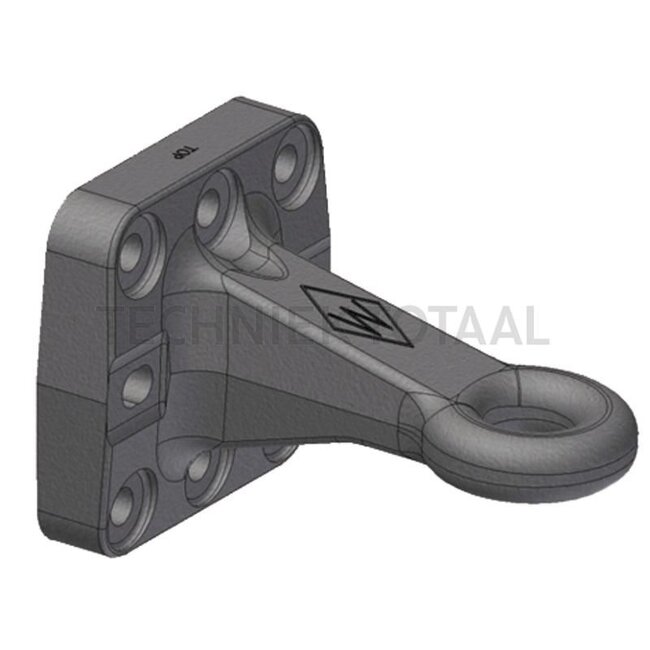

Walterscheid Drawbar eye - 770ZO5145 | Version: Pick-up hitch | D-value: 102,4 / 107,4 kN | Hole pattern: 145 x 145 mm | Towing eye Ø: 50 mm | Load capacity: 3000 / 1500 kg | Colour: black | Lock: Ring, not rotatable | A: 240 mm | No. of holes: 8 | Overhang: 240 mm |
€663,08
€534,84Incl. VAT
In stock
€442,02
Excl. VAT
Version: Pick-up hitch. D-value: 102,4 / 107,4 kN. Hole pattern: 145 x 145 mm. Towing eye Ø: 50 mm. Load capacity: 3000 / 1500 kg. Colour: black. Lock: Ring, not rotatable. A: 240 mm. No. of holes: 8. Overhang: 240 mm. B: 145 mm. Description: The ring dim
Read more.
50.000+ technical products
Worldwide shipping*
30-day return policy
Rating 4.7/5 (420 reviews)
Product description
Drawbar eye
Version: Pick-up hitch
D-value (kN): 102,4 / 107,4
Hole pattern (mm): 145 x 145
Towing eye Ø: 50 mm
Load capacity (kg): 3000 / 1500
Colour: black
Lock: Ring, not rotatable

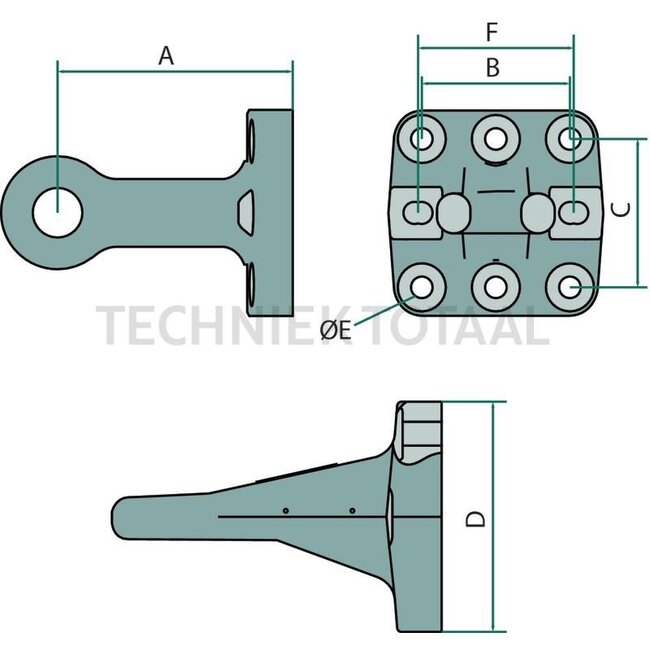

A (mm): 240
No. of holes: 8
Overhang (mm): 240
B (mm): 145
Description: The ring dimensions of the drawbar eye comply with ISO 20019. The areas of application include use on agricultural or forestry trailers. Product advantages: Forged from high-strength material.
Hole (mm): M21
C (mm): 145
D (mm): 200
Flange: 8 holes
Included in delivery: Includes 1x drawbar eye 770ZO5145 with type plate.

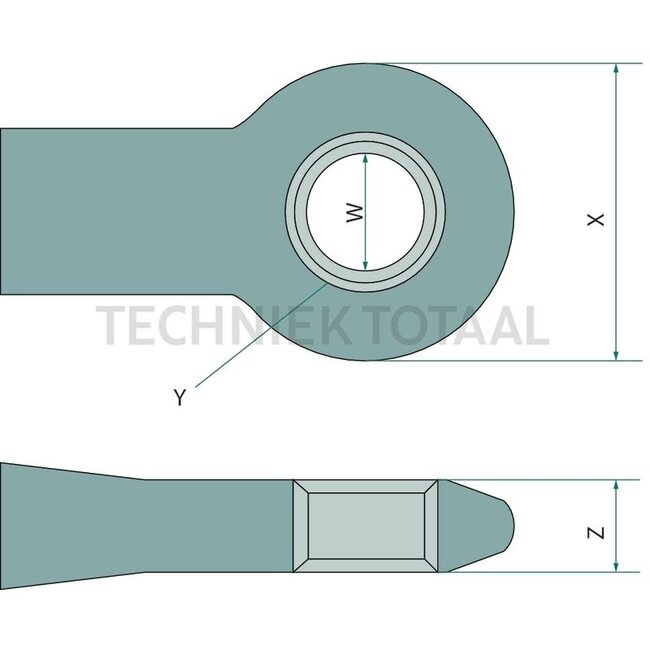

W (mm): 50
X (mm): 110 - 115
Y (mm): 32 - 34
F (mm): 145 - 160
Z (mm): 35 - 37
Assembly notes: Drawbar eyes in accordance with DIN 9678 (ISO 5692-1). The ring dimensions comply with ISO 20019.
