Walterscheid Flange hitch - 770KU9208A | Lock: Automatic bolt | Hole pattern: 140 x 80 mm | Load capacity: 2000 kg | D-value: 65 kN | Hole: M17 mm | No. of holes: 4 | Colour: Black | Connecting pin: 38 mm | Description: This product is an automatic trailer hitch. The
€1.545,36 €1.247,21 Incl. VAT
Walterscheid Flange hitch - 770KU9208A | Lock: Automatic bolt | Hole pattern: 140 x 80 mm | Load capacity: 2000 kg | D-value: 65 kN | Hole: M17 mm | No. of holes: 4 | Colour: Black | Connecting pin: 38 mm | Description: This product is an automatic trailer hitch. The
Walterscheid
(0)
-19%
Walterscheid Flange hitch - 770KU9208A | Lock: Automatic bolt | Hole pattern: 140 x 80 mm | Load capacity: 2000 kg | D-value: 65 kN | Hole: M17 mm | No. of holes: 4 | Colour: Black | Connecting pin: 38 mm | Description: This product is an automatic trailer hitch. The

Walterscheid Flange hitch - 770KU9208A | Lock: Automatic bolt | Hole pattern: 140 x 80 mm | Load capacity: 2000 kg | D-value: 65 kN | Hole: M17 mm | No. of holes: 4 | Colour: Black | Connecting pin: 38 mm | Description: This product is an automatic trailer hitch. The

€1.545,36
€1.247,21 Incl. VAT
In stock
€1.030,75 Excl. VAT

Lock: Automatic bolt. Hole pattern: 140 x 80 mm. Load capacity: 2000 kg. D-value: 65 kN. Hole: M17 mm. No. of holes: 4. Colour: Black. Connecting pin: 38 mm. Description: This product is an automatic trailer hitch. The jaw dimensions and area of applicati Read more.

  • 50.000+ technical products
  • Worldwide shipping*
  • 30-day return policy
  • Rating 4.7/5 (420 reviews)


Product description

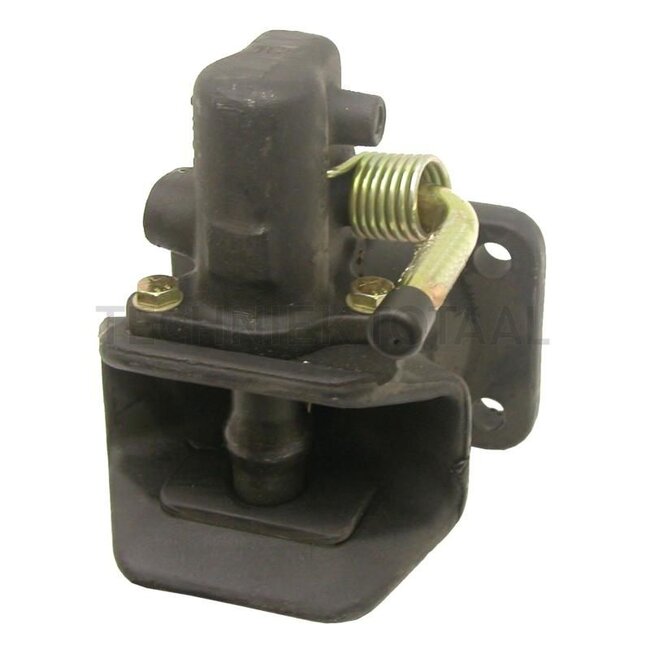

Flange hitch

  • Lock: Automatic bolt
  • Hole pattern (mm): 140 x 80
  • Load capacity (kg): 2000
  • D-value (kN): 65
  • Hole (mm): M17
  • No. of holes: 4
  • Colour: Black
  • Connecting pin (mm): 38
  • Description: This product is an automatic trailer hitch. The jaw dimensions and area of application comply with DIN 11029. It is designed with a lever trigger system, i.e. the coupling process is triggered by moving a drawbar eye into the jaw and pressing back the trigger lever. The hitch is normally closed and locked. This version has a spherical hitch bolt (D: 38 mm) and can be pivoted 360°. The torque required for this purpose is 100 to 150 Nm. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: forged connecting flange
  • Hole Ø (mm): 17
  • Drawbar eye: DIN 11026, 74054
    (ISO 8755) = 40 mm
  • Assembly notes: Suitable for drawbar eyes according to DIN 74054 (ISO 8755).

  • Passend voor:

  • New Holland: 8002791, Serie CR, CR 7.90, CR 8.80, CR 8.90, CR 9.80, CR 9.90, CR 10.90, CR 8070 E3 Tier 3 (12/11-), CR 8070 E4 Tier 4 (12/11), CR 8080 E3 Tier 3 (12/11-), CR 8080 E4 Tier 4 (12/11), Serie CR 9000, CR 9060 (9/06-), CR 9060 (10/07-12/11), CR 9070 E4 Tier 4 (12/11-), CR 9070 Tier 3 (10/07-12/11), CR 9080 (9/06-), CR 9080 (10/07-12/11), CR 9080 E3 (12/11-), CR 9080 E4 (12/11-), CR 9090 E4 Tier 4 (12/11-), CR 9090 Tier 3 (1/09-12/11), Serie CSX 7000, CSX7040 (9/08-), CSX7050 (9/08-), CSX7060 (9/06-8/08), CSX7060 (9/08-), CSX7070 (9/08-), CSX7080 (9/06-8/08), CSX7080 (9/08-), Serie CX, CX 6.80, CX 6.90, CX 7.90, CX 8.70, CX 8.80, CX 8.85, CX 8.90, CX 7080 E4 (10/13-), CX 7090 E4 (10/13-), Serie CX 5000, CX 5080 E4 (4/11-), CX 5090 E4 (4/11-), Serie CX 6000, CX 6080 E4 (4/11-), CX 6090 E3 Tier 3 (4/11-), CX 6090 E4 Tier 4 (4/11-), Serie CX 8000, CX8030 (1/06-4/11), CX8040 (1/06-4/11), CX8040 E4 Tier 4 (4/11-), CX8050 (1/06-4/11), CX8050 E4 Tier 4 (4/11-), CX8060 (1/06-4/11), CX8060 E3 Tier 3 (4/11-), CX8070 (1/06-4/11), CX8070 E3 (4/11-), CX8070 E4 (4/11-), CX8070 E4 (10/13-), CX8080 (1/06-4/11), CX8080 E3 (4/11-), CX8080 E4 (4/11-), CX8080 E4 (10/13-), CX8090 (1/06-4/11), CX8090 E4 (4/11-), CX8090 E4 (10/13-), Serie FR, FR 450 E3 (9/12-), FR 450 E4 (9/12-), FR 480, FR 500 E3 (9/12-), FR 500 E4 (9/12-), FR 550, FR 600 E3 (9/12-), FR 650, FR 700 E3 (9/12-), FR 780, FR 850 E2 (9/12-), FR9040, FR9050, FR9060, FR9080, FR9090, Serie T4, T4.55 (9/11-), T4.55 Tier 4a (5/14-), T4.65 (9/11-), T4.65 Tier 4a (5/14-), T4.75 (5/14-), T4.75 (6/13-), T4.75 (9/11-), T4.75 HI-LO (3/14-), T4.75 HI-LO (6/13-), T4.75 Tier 4a (3/14-), Serie TC, TC 4.90, TC 5.70, TC 5.80, TC 5.90, TC5050 E3 1/07-), TC5060 E4 (10/13-), TC5070 E3 (1/07-), TC5070 E4 (9/11-), TC5070 E4 (10/13-), TC5080 E3 (1/07-), TC5080 E4 (9/11-), TC5080 E4 (10/13-)
  • Fendt: 8002791, Ideal, Ideal 7, Serie C, 6300C, 6335C, Serie Farmer 100, Farmer 102 (Typ 135), Farmer 103 (Typ 138), Farmer 104 (Typ 238), Farmer 105 (Typ 258), Farmer 106 (Typ 268), Serie Farmer 300, Farmer 304 (Typ 158), Farmer 306 (Typ 168), Farmer 307 (Typ 117), Farmer 307 (Typ 170), Farmer 307 (Typ 175), Farmer 307 (Typ 307), Farmer 308 (Typ 118), Farmer 308 (Typ 178), Farmer 308 (Typ 308), Farmer 309 (Typ 119), Farmer 309 (Typ 186), Farmer 309 (Typ 309), Farmer 310 (Typ 192), Farmer 310 (Typ 310), Farmer 312 (Typ 199), Farmer 312 (Typ 312), Serie Farmer 400, Farmer 409 (Typ 409), Farmer 410 (Typ 410), Farmer 411 (Typ 411), Farmer 412 (Typ 412), Serie Favorit 500, Favorit 509 (Typ 509), Favorit 510 (Typ 510), Favorit 511 (Typ 511), Favorit 512 (Typ 512), Favorit 514 (Typ 514), Serie Favorit 700, Favorit 711 (Typ 711), Favorit 712 (Typ 712), Serie Fendt 200, Fendt 207 V+F (Typ 260), Fendt 208 V+F (Typ 261), Fendt 210 V+F (Typ 263), Fendt 211 V+F (Typ 264), Serie Fendt 700, Fendt 712 (Typ 724), Serie Geräteträger, GT 350, GT 360, GT 365, GT 390, Serie L, 5225L, 6270L, 6275L, Serie P, 8370P, 8380P, 8400P, 8410P, Serie R, 9350R, Serie Xylon, Xylon 520, Xylon 522, Xylon 524
  • Krone: 8002791, Serie Big X, Big X 500, Big X 600, Big X 650, Big X 700, Big X 700-1, Big X 750, Big X 800, Big X 850, Big X 1000, Big X 1100, Big X 1100-1, Big X V8, Big X V12, BigX 850-1
  • Laverda: 8002791, Serie 2000, 2050, 2350, 2760, Serie 3000, 3300, 3350, 3400, 3450, 3500, 3550, 3600, 3650, 3700, 3750, 3790, 3850, 3890, 3900, Serie L, L 517, L 520, L 521, L 524, L 624, Serie M, M 120, M 152
  • John Deere: 8002791, Serie 6050, 6850, Serie 7050, 7550, 7750, Serie 7080, 7480, 7580, 7780, 7980, Serie 8000, 8500, 8600, 8700, 8800, Serie C, C 670, Serie S, S 660, S 670, S 680, S 690, Serie T, T550, T560, T660, T670, Serie W, W550, W650, W660, Serie X700, X700, X740
  • Weidemann: 8002791, 1000, 1260, 1280, 4000, 4080, 5000, 5080
  • Deutz-Fahr: 8002791, Serie 5600, 5650, 5660, 5665, 5690, 5695, Serie 6000, 6040, 6060, 6060HTS, 6065, 6065HTS, 6090, 6090HTS, 6095, 6095HTS, Serie Agrovector, Agrovector 26.6, Agrovector 29.6, Agrovector 40.9, Serie AgroXtra, AgroXtra 4.17, AgroXtra 4.47, Serie DX, DX 80, DX 85, DX 86, DX 90, DX 92, Serie DX 6, DX 6.30, DX 6.50, Serie DX 8, DX 8.30, Serie Ectron, Ectron 5530, Serie Intrac, Intrac 6.05, Intrac 6.30, Intrac 6.60, Intrac 2002, Intrac 2003, Intrac 2004, Intrac 2005, Intrac 2006, Serie M 2000, M 2780 H
  • Massey Ferguson: 8002791, Serie 7200, 7240, 7245, 7246, 7247, 7260, 7270, 7280, 7282, Serie 7300, 7345, 7347, 7360, 7370, Serie 9500, 9530, Serie 9600, 9695, Serie 9700, 9795, Serie Activa, 7340, 7344, Serie Delta, 9280
  • Claas: 8002791, Serie Dominator, Dominator 68, Dominator 88, Dominator 108, Dominator 130, Dominator 150, Serie Jaguar, Jaguar 830, Jaguar 850, Jaguar 860, Jaguar 870, Jaguar 890, Jaguar 900, Serie Lexion, Lexion 510, Lexion 520, Lexion 530, Lexion 540, Lexion 550, Lexion 570, Lexion 580, Lexion 600, Serie Scorpion, Scorpion 6030, Serie Targo, Targo C40, Targo C50, Targo K50, Targo K60, Targo K70, Serie Tucano, Tucano 320, Tucano 330, Tucano 340, Tucano 430, Tucano 440
  • Further information

    Article number
    770KU9208A
