Product description

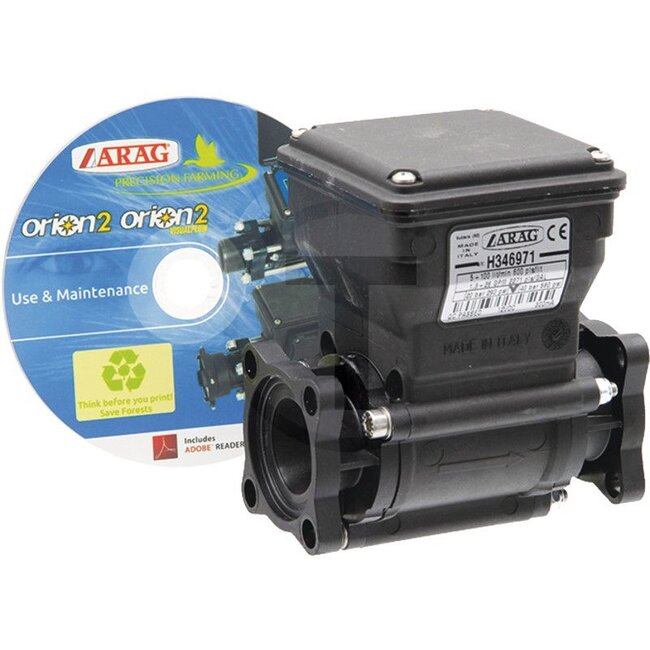

Flow meter ORION 2 Inner Ø 18.5 mm For valve series 863 and 463
Version: The new ORION 2 is equipped with sealed connecting plugs integrated into the housing and an LED operating status display
Advantages • Low wear as there are no mechanical moving parts • Insensitive to the density and viscosity of the liquid • Low sensitivity to turbulence • High level of accuracy • Low maintenance
Technical properties • Typical error 0.5% of the full deflection • Operating pressure up to 40 bar • Supply voltage 11-15 V DC • Impulse output 0-12 V DC with frequency proportional to throughput • Maximum consumption 300 mA • Signal only emitted with moving liquids • Flanged connections • Machine parts coming in contact with the spray liquid are made of polypropylene and stainless steel 316
Operating pressure max. (bar): 40
Flow rate (l/min): 10 - 200
Additional information: Only use the flow meter and proportional control valve within the specified flow rates given in the technical data. Outside of these flow rates, incorrect values could be reported which could cause the operator or the automatic system to make mistakes. Oversized flow meters or proportional valves can result in measurement errors and inaccurate automatic control/regulation.
