Product description

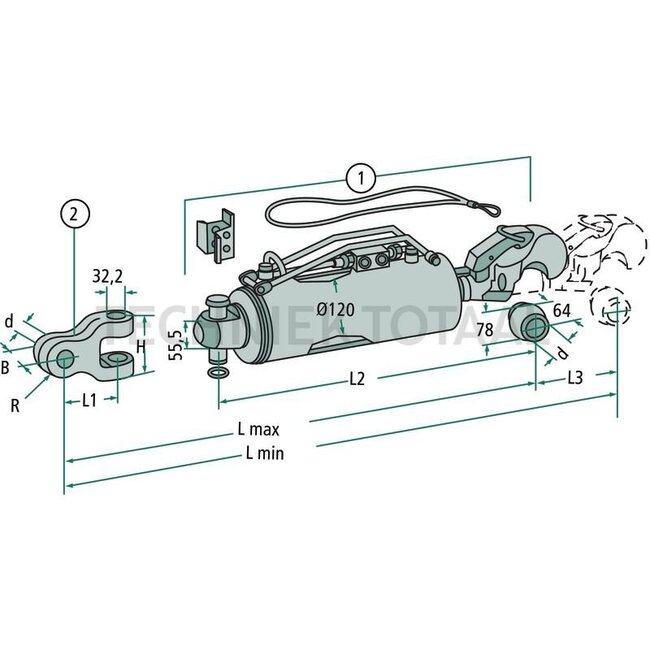

Hydraulic top link
A cat.: 4 / 45
B cat.: 4 / 45
F (mm): 659 / 907
Cylinder Ø inner E (mm): 120
Check valve: Top
Tensile force (t): 18,6
Stroke (mm): 248
L2 (mm): 659
Max. power (kW (hp)): 294 (400)
Description: Advantages: Suitable for absorbing high tensile and compressive forces All components can be replaced separately Large range of replacement parts Versatile as different clevises can be attached Long service life Valve block protected with a special reinforced bracket

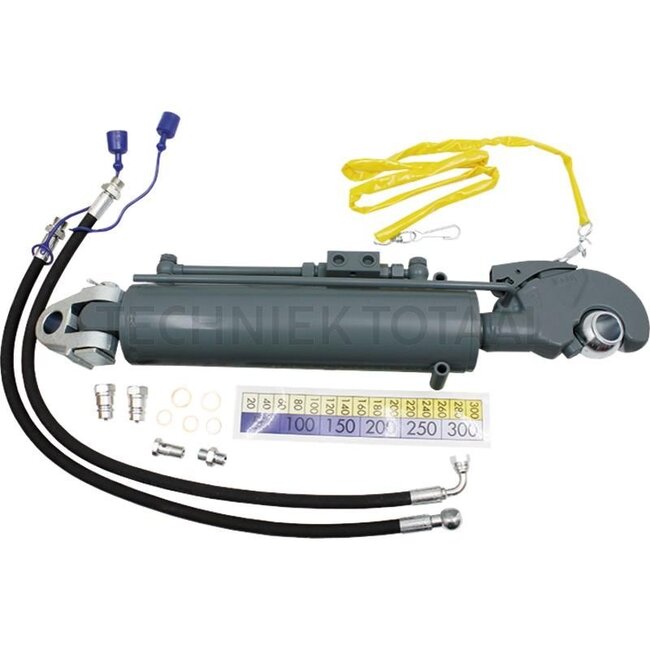

Included in delivery: 1x hydraulic top link C-120 Cat. 4 1x bolt KPL139 (part number: 395206440) 1x bracket Cat. 2/3 (part number: 395308347) 1x operating cable (part number: 395307612) 1x ball sleeve Cat. 4HD (part number: 395204783) 1x marking sticker (part number: 395305934) (Already attached to the cylinder) PLEASE NOTE: Hose set and clevis head not included.
Type: Tail hook/clevis joint
Assembly notes: The Walterscheid Cat. 4 hydraulic top link is only suitable for tractors with up to max. 294 kW (400 PS) engine power.
