Walterscheid Hydraulic top link - 395309535, 1309535 | Top link type: hydraulic | Type: Tail hook/clevis joint | A cat.: 2 / 25,4 | B cat.: 2 / 25,4 | F: 553 / 783 mm | Stroke: 230 mm | Cylinder Ø inner E: 63 mm | L2: 553 mm | Description: <b>Advantages:</b> | All co
€1.138,56
€1.029,58Incl. VAT
Walterscheid Hydraulic top link - 395309535, 1309535 | Top link type: hydraulic | Type: Tail hook/clevis joint | A cat.: 2 / 25,4 | B cat.: 2 / 25,4 | F: 553 / 783 mm | Stroke: 230 mm | Cylinder Ø inner E: 63 mm | L2: 553 mm | Description: <b>Advantages:</b> | All co
Walterscheid Hydraulic top link - 395309535, 1309535 | Top link type: hydraulic | Type: Tail hook/clevis joint | A cat.: 2 / 25,4 | B cat.: 2 / 25,4 | F: 553 / 783 mm | Stroke: 230 mm | Cylinder Ø inner E: 63 mm | L2: 553 mm | Description: <b>Advantages:</b> | All co
€1.138,56
€1.029,58Incl. VAT
In stock
€850,89
Excl. VAT
Top link type: hydraulic. Type: Tail hook/clevis joint. A cat.: 2 / 25,4. B cat.: 2 / 25,4. F: 553 / 783 mm. Stroke: 230 mm. Cylinder Ø inner E: 63 mm. L2: 553 mm. Description: <b>Advantages:</b> All components can be replaced separately Large range of re
Read more.
50.000+ technical products
Worldwide shipping*
30-day return policy
Rating 4.7/5 (420 reviews)
Product description
Hydraulic top link

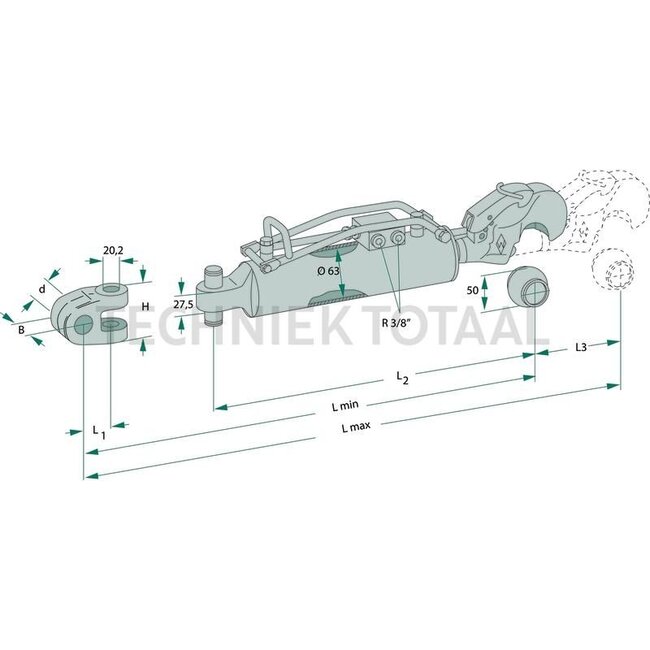

Top link type: hydraulic
Type: Tail hook/clevis joint
A cat.: 2 / 25,4
B cat.: 2 / 25,4
F (mm): 553 / 783
Stroke (mm): 230
Cylinder Ø inner E (mm): 63
L2 (mm): 553
Description: Advantages: All components can be replaced separately Large range of replacement parts Versatile as different clevises can be attached Long service life Valve block protected with a special reinforced bracket

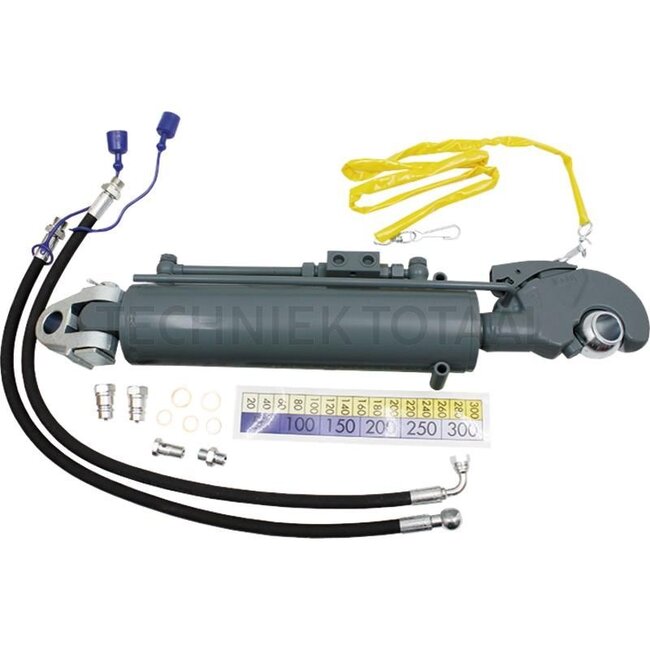

Included in delivery: 1x hydraulic top link C-63 Cat. 2 1x bolt 4KT25 (part number: 395207071) 1x bracket Cat. 2/3 (part number: 395308347) 1x operating cable (part number: 395305453) 1x ball sleeve Cat. 2 (part number: 395099042) 1x marking sticker (part number: 395305934) (Already attached to the cylinder) PLEASE NOTE: Hose set (part number: 3951207333) and clevis head not included.
Tensile force (t): 4,2
Max. power (kW (hp)): 74 (100)
Assembly notes: The Walterscheid Cat. 2 hydraulic top link is only suitable for tractors with up to max. 74 kW (100 PS) engine power.
