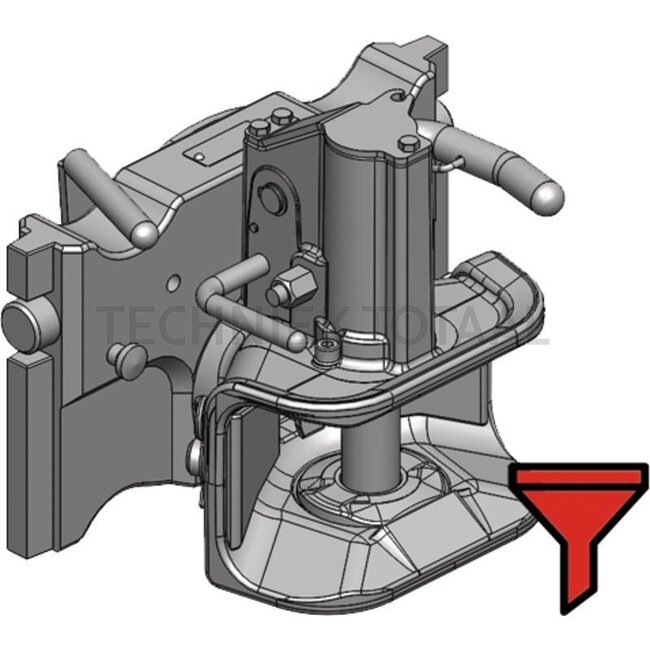

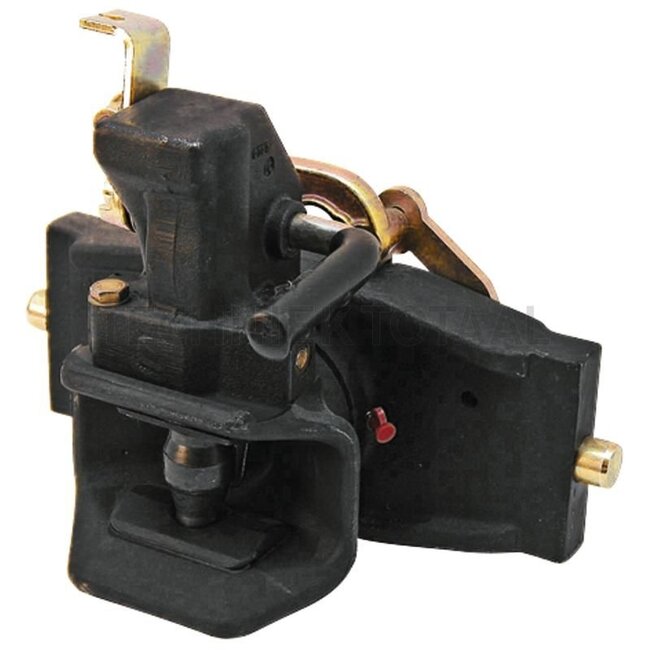

Walterscheid Inner part - 770KU2000/311NB, 8004188 | Rail width: 311 mm | Detent pin Ø: 22 mm | Guide width: 30 mm | Connecting pin: 38 mm | Load capacity: 2000 kg | D-value: 88,5 kN | Colour: Black | Description: This product is an automatic trailer hitch. The jaw di
€2.178,26
€1.735,17Incl. VAT
Walterscheid Inner part - 770KU2000/311NB, 8004188 | Rail width: 311 mm | Detent pin Ø: 22 mm | Guide width: 30 mm | Connecting pin: 38 mm | Load capacity: 2000 kg | D-value: 88,5 kN | Colour: Black | Description: This product is an automatic trailer hitch. The jaw di
Walterscheid Inner part - 770KU2000/311NB, 8004188 | Rail width: 311 mm | Detent pin Ø: 22 mm | Guide width: 30 mm | Connecting pin: 38 mm | Load capacity: 2000 kg | D-value: 88,5 kN | Colour: Black | Description: This product is an automatic trailer hitch. The jaw di
€2.178,26
€1.735,17Incl. VAT
In stock
€1.434,02
Excl. VAT
Rail width: 311 mm. Detent pin Ø: 22 mm. Guide width: 30 mm. Connecting pin: 38 mm. Load capacity: 2000 kg. D-value: 88,5 kN. Colour: Black. Description: This product is an automatic trailer hitch. The jaw dimensions and area of application comply with DI
Read more.
50.000+ technical products
Worldwide shipping*
30-day return policy
Rating 4.7/5 (420 reviews)
Product description
Inner part
Rail width (mm): 311
Detent pin Ø (mm): 22
Guide width (mm): 30
Connecting pin (mm): 38
Load capacity (kg): 2000
D-value (kN): 88,5
Colour: Black
Description: This product is an automatic trailer hitch. The jaw dimensions and area of application comply with DIN 11028, RREG 2009/144/EC, VO (EU) 2015/208, UN ECE R147 and class c40. The hitch is designed with a lever trigger system, i.e. the coupling process is triggered by moving a drawbar eye into the jaw and pressing back the trigger lever. The hitch is normally closed and locked. This version has a spherical hitch bolt (D: 37 mm) and can be pivoted 360°. The torque required for this purpose is 100 to 150 Nm. The automatic trailer hitch is only offered as a height-adjustable inner part and can only be operated in hitch supports with quick height adjustment. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: quick height adjustment, made of forged material, hitch bolt can be freely rotated 360 degrees
Drawbar eye: DIN 11026, 74054 (ISO 8755) = 40 mm
Lock: Automatic, spherical hitch bolt
Assembly notes: Suitable for drawbar eyes according to DIN 11026 (ISO 5692-2)/DIN 11043/DIN 74054 (ISO 8755)/DIN 9678 (ISO 5692-1).
