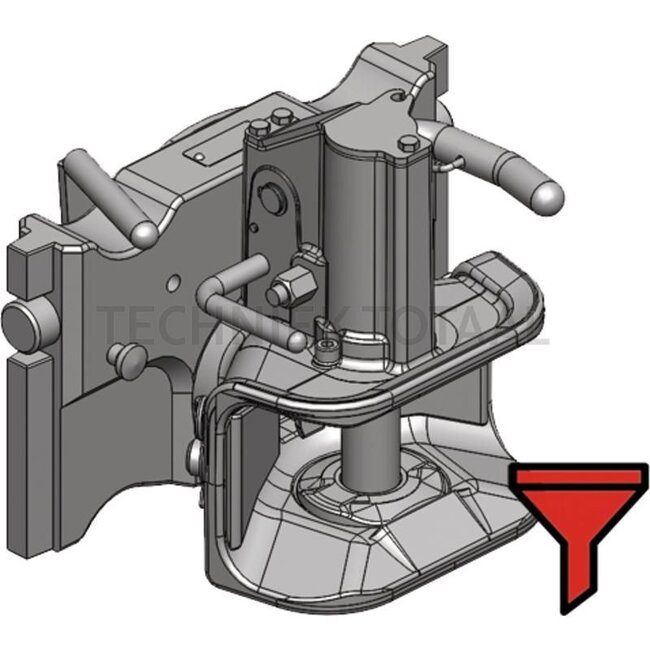

Walterscheid Inner part - 770KU5410/329, 8003699, AL78074, AL157772 | Rail width: 330 mm | Detent pin Ø: 25 mm | Guide width: 32 mm | Connecting pin: 31 mm | Load capacity: 2000 kg | D-value: 92 kN | Colour: Black | Description: This product is a non-automatic trailer
€939,42
€748,32Incl. VAT
Walterscheid Inner part - 770KU5410/329, 8003699, AL78074, AL157772 | Rail width: 330 mm | Detent pin Ø: 25 mm | Guide width: 32 mm | Connecting pin: 31 mm | Load capacity: 2000 kg | D-value: 92 kN | Colour: Black | Description: This product is a non-automatic trailer
Walterscheid Inner part - 770KU5410/329, 8003699, AL78074, AL157772 | Rail width: 330 mm | Detent pin Ø: 25 mm | Guide width: 32 mm | Connecting pin: 31 mm | Load capacity: 2000 kg | D-value: 92 kN | Colour: Black | Description: This product is a non-automatic trailer
€939,42
€748,32Incl. VAT
In stock
€618,45
Excl. VAT
Rail width: 330 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Connecting pin: 31 mm. Load capacity: 2000 kg. D-value: 92 kN. Colour: Black. Description: This product is a non-automatic trailer hitch. The jaw dimensions and area of application comply with D
Read more.
50.000+ technical products
Worldwide shipping*
30-day return policy
Rating 4.7/5 (420 reviews)
Product description

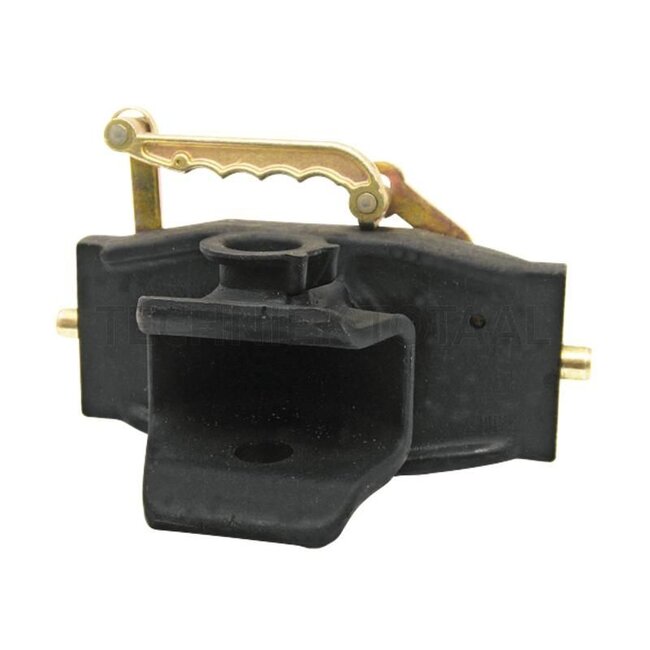

Inner part
Rail width (mm): 330
Detent pin Ø (mm): 25
Guide width (mm): 32
Connecting pin (mm): 31
Load capacity (kg): 2000
D-value (kN): 92
Colour: Black
Description: This product is a non-automatic trailer hitch. The jaw dimensions and area of application comply with DIN 11028, RREG 2009/144/EC, VO (EU) 2015/208, UN ECE R147 and class c40. The hitch is normally closed and locked. This version has a cylindrical hitch bolt (D: 31 mm) and can be pivoted 360°. The torque required for this purpose is 100 to 150 Nm. The trailer hitch is only offered as a height-adjustable inner part and can only be operated in hitch supports with quick height adjustment. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: quick height adjustment, made of forged material
Included in delivery: Includes 1x inner part 770KU5410/329 and 1x tension bolt 770ZB335L30KPL.
Drawbar eye: DIN 11026, 74054 (ISO 8755) = 40 mm DIN 74053 (ISO 1102) = 50 mm
Lock: Manual, cylindrical hitch bolt
Assembly notes: Suitable for drawbar eyes according to DIN 11026 (ISO 5692-2)/DIN 11043/DIN 74054 (ISO 8755)/DIN 74053 (ISO 1102)/DIN 9678 (ISO 5692-1) and ‘Swiss drawbar eye’.
Passend voor:
John Deere: 8003699, AL78074, AL157772, Serie 5E, 5055E, 5058E, 5067E, 5075E, 5093E Limited, 5101EN, Serie 5M, 5070M, 5075M, 5080M, 5085M, 5090M, 5095M, 5100M, 5115M, Serie 5R/5RN, 5080R, 5090R, 5100R, 5115R, 5125R, Serie 6D, 6100D, 6115D, 6130D, Serie 6M, 6105M, 6110M, 6115M, 6120M, 6125M, 6130M, 6135M, 6140M, 6145M, 6150M, 6155M, 6170M, 6175M, 6195M, Serie 6MC, 6090MC, Serie 6R, 6105R, 6110R, 6115R, 6120R, 6125R, 6130R, 6135R, 6140R, 6145R, 6150R, 6155R, 6170R, 6190R, 6195R, 6210R, 6215R, Serie 8R/8RT, 8245R, 8260R, 8270R, 8285R, 8295R, 8295RT, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, Serie 30, 2030, Serie 40, 2040, 2140, 3040, 3140, 3340 (nur für Spanien), 3640, Serie 50, 1350, 1550, 1750, 1850, 1950, 2250, 2450, 2650, 2850, 3050, 3350, 3650, Serie 70, 8570, 8770, 8870, 8970, Serie 5020, 5720, 5820, Serie 5020/5020N, 5620, 5720, 5820, Serie 6000/6000SE, 6100, 6200, 6300, 6400, 6506, 6600, SE6100, SE6200, SE6300, SE6400, Serie 6010/6010SE, 6010, 6110, 6210, 6310, 6410, 6510, 6610, SE6010, SE6110, SE6210, SE6310, SE6410, SE6510, Serie 6020/6020SE, 6020, 6120, 6220, 6320, 6420, 6420S, 6520, 6620, 6820, 6920, 6920S, SE6020, SE6120, SE6220, SE6320, SE6420, SE6520, SE6620, Serie 6030/6030PR, 6130, 6230, 6230 PR, 6330, 6330 PR, 6430, 6430 PR, 6530, 6530 PR, 6534 PR, 6630, 6630 PR, 6830, 6830 PR, 6930, 6930 PR, Serie 6115, 6115, Serie 6125, 6125, Serie 6140, 6140, Serie 7000, 7200, Serie 7020, 7720, 7820, 7920, Serie 7030/7030PR, 7230, 7430 PR, 7530 PR, 7630, 7730, 7830, 7930, Serie 7210, 7210, Serie 8010/8010T, 8110, 8210, 8310, 8410, Serie 8020/8020T, 8120, 8220, 8320, 8420, 8520, Serie 8030/8030T, 8130, 8230, 8330, 8430, 8530, Serie CWS/WTS, 1550, Serie ProGator, 2030
Kubota: 8003699, Serie M, M 100, M 105, M 108 S, M 110, M 125, M 128, M 5091, M 5111, M 6040, M 6060, M 7040, M 7060, M 8540, M 8560, M 9540, M 9960
Valtra-Valmet: 8003699, Serie 100, 600, 700, 800, 900, Serie 6000, 6000, Serie 8000, 8300, 8600, 8800, 8850, Serie A, A 65, A 72, A 75, A 82, A 83, A 85, A 92, A 93, A 95, Serie C, C 90, C 100, C 120, C 130, C 150, Serie Hitech, 6350, 6550, 6850, 8350, 8950, Serie M, M 120, M 130, M 150, Serie Mega, 8000, 8050, 8100, 8150, 8200, 8400, 8450, 8550, 8750, Serie Mezzo, 6200, 6300, 6400, 6600, Serie N1, N 91, N 101, N 111, N 121, N 141, Serie N2, N 82, N 92, N 122, N 142, Serie N3, N 93 H3, N 103, N 113, N 123, N 143, N 163, Serie N4, N 104, N 114, N 124, N 134, N 154, N 174, Serie S, S 230, S 240, S 260, S 280, Serie S2, S 232, S 262, S 292, S 322, S 352, Serie S3, S 233, S 263, S 293, S 323, S 353, Serie T, T 120, T 130, T 140, T 160, T 170, T 180, T 190, Serie T1, T 121, T 131, T 151, T 161, T 171, T191LS, Serie T2, T 132, T 152, T 162, T 172, T 182, T 202, Serie T3, T 133, T 153, T 163, T 173, T 183, T 193, T 203, T 213, Serie XM, XM130, XM150
Mercedes Benz: 8003699, Serie MB-Trac, MB-Trac 1300, MB-Trac 1400, MB-Trac 1500, MB-Trac 1600, Serie Unimog, Unimog U 300, Unimog U 400, Unimog U 500, Unimog U 1700, Unimog U 1800, Unimog U 2100, Unimog U 2150, Unimog U 2400
Lamborghini: 8003699, Serie R6, R6.135, R6.140, Serie R6 Com3, R6.185 Com3, Serie R6 VRT, R6.150.7 VRT, R6.165.7 VRT, Serie R6 VRT Com3, R6.150 VRT Com3, R6.170 VRT Com3, Serie R8, R8.215, R8.230, R8.265, R8.270, Serie Strike, Strike 100, Strike 110, Serie Traction, Traction 265, Serie Victory, Victory 230, Victory 260
Same: 8003699, Serie Diamond, Diamond 215, Diamond 230, Diamond 260, Diamond 265, Diamond 270 DCR, Serie Diamond II, Diamond II 230, Diamond II 260, Serie Explorer Tier 4f, Explorer 110 Tier 4f, Explorer 120 Tier 4f, Serie Explorer³ Tier3, Explorer³ 110 Tier 3, Serie Iron Continuo, Iron 150.7 Continuo, Iron 165.7 Continuo, Serie Iron Continuo Tier3, Iron 150 Continuo Tier 3, Iron 170 Continuo Tier 3, Iron 190 Continuo Tier 3
Case IH: 8003699, Serie Compact, C 42, C 48, C 55, C 64, C 70, Serie Farmall C, Farmall 85C (3/14-), Farmall 85C (12/12-), Farmall 95C (3/14-), Farmall 95C (12/12-), Serie JX, JX 60 Tier 3 (12/08-12/13), JX 70, JX 80, JX 90, JX 95 Tier 3 (1/07-12/14), Serie JXC, JX 1060 C (12/03-6/08), JX 1070 C (12/03-), JX 1075 C (12/03-), JX 1085C, JX 1095C (10/05-), Serie JXU, JX 70U, JX 80U, JX 90U, JX 100U, JXU 75, JXU 85, JXU 95, JXU 105, JXU 115, Serie Luxxum, Luxxum 100, Luxxum 110, Luxxum 120, Serie Magnum, Magnum 225 (1/06-), Magnum 250 (1/06-), Magnum 280 (1/06-), Magnum 310 (1/06-), Magnum 335, Serie Magnum Tier 4, Magnum 235 Tier 4a, Magnum 235 Tier 4a CVT, Magnum 260 Tier 4a, Magnum 260 Tier 4a CVT, Magnum 290 Tier 4a, Magnum 290 Tier 4a CVT, Magnum 315 Tier 4a, Magnum 315 Tier 4a CVT, Magnum 340 Tier 4a, Magnum 340 Tier 4a CVT/CVX, Magnum 340 Tier 4b CVT/CVX (4/14-), Serie MX, MX 180 Magnum, MX 200 Magnum, MX 210 Magnum, MX 220 Magnum, MX 230 Magnum, MX 240 Magnum, MX 255 Magnum, MX 270 Magnum, MX 285 Magnum, Serie Quantum C, Quantum 85C, Quantum 95C
Fiat: 8003699, Serie 66, 50-66 S, 55-66, 60-66 S, 65-66 S, 70-66 S, Serie 80, 580, 680, 780, 880, 980, 980 DT, 1180, 1280, 1380, 1580, 1880, Serie 88, 65-88, 70-88, 80-88, Serie 90, 55-90, 60-90, 65-90, 70-90, 80-90, 85-90, 90-90, 100-90, 110-90, 115-90, 130-90, 140-90, 160-90, 180-90, Serie 93, 60-93, 65-93, 72-93, 82-93, 88-93, Serie 94, 60-94, 65-94, 72-94, 82-94, 88-94, Serie G, G 170, G 190, G 210, G 240, Serie Winner F100, F 100, F 110, F 115, F 120, F 130, F 140
Zetor: 8003699, Serie UR1, 6320, Serie UR3, 7520, 8520
