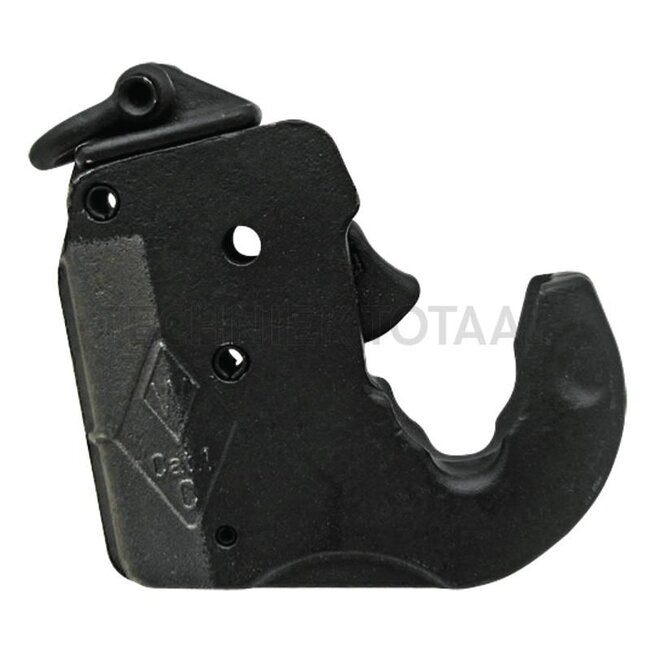

Lower link hook Walterscheid lower link catch hook cat.1 forged from high strength steel.

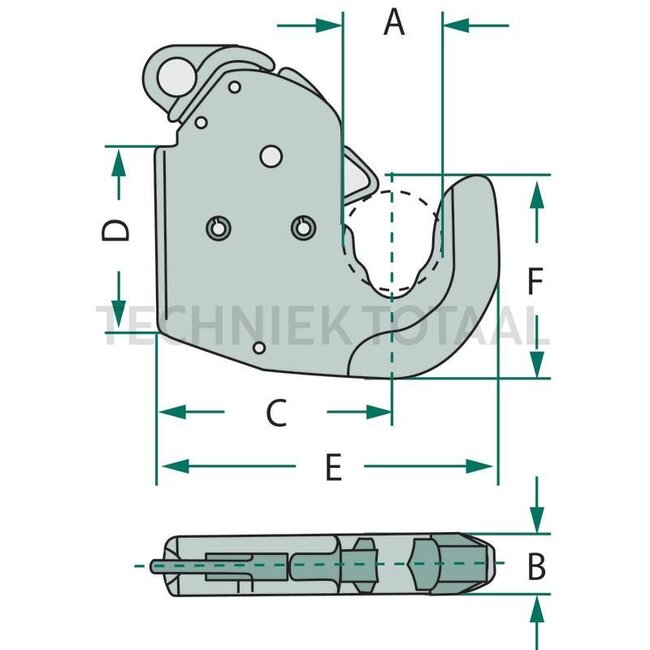

Category: 1Max. power (kW (hp)): 40 (54)A (mm): 44B (mm): 28C (mm): 105D (mm): 100E (mm): 150F (mm): 85Description: Advantages:
Suitable for absorbing high tensile, compressive and lateral forces
Centring bevels facilitate the coupling process
Safety lock prevents unwanted opening
Low sensitivity to dirt thanks to the small number of components and the dirt outlet opening
Locking pawl can be secured with a bolt for complete lockingIncluded in delivery: Includes a complete Walterscheid lower link hook Cat. 1.
All other attachments are not included and may have to be purchased individually or as a set (part number: 395208547).Assembly notes: The Walterscheid Cat. 1 lower link hook is only suitable for tractors up to max. 40 kW (55 PS) engine power.
