Walterscheid Spherical cap - 770ZKK80-375VS | D-value: 76,3 kN | Load capacity: 2000 kg | Colour: Bare metal | Lock: ball 80 | Description: This product is a spherical cap suitable for connection with a hitch ball D: 80 mm (ISO 24347). The areas of application include
€557,68
€504,30Incl. VAT
Walterscheid Spherical cap - 770ZKK80-375VS | D-value: 76,3 kN | Load capacity: 2000 kg | Colour: Bare metal | Lock: ball 80 | Description: This product is a spherical cap suitable for connection with a hitch ball D: 80 mm (ISO 24347). The areas of application include
Walterscheid Spherical cap - 770ZKK80-375VS | D-value: 76,3 kN | Load capacity: 2000 kg | Colour: Bare metal | Lock: ball 80 | Description: This product is a spherical cap suitable for connection with a hitch ball D: 80 mm (ISO 24347). The areas of application include
€557,68
€504,30Incl. VAT
In stock
€416,78
Excl. VAT
D-value: 76,3 kN. Load capacity: 2000 kg. Colour: Bare metal. Lock: ball 80. Description: This product is a spherical cap suitable for connection with a hitch ball D: 80 mm (ISO 24347). The areas of application include use on agricultural or forestry trai
Read more.
50.000+ technical products
Worldwide shipping*
30-day return policy
Rating 4.7/5 (420 reviews)
Product description

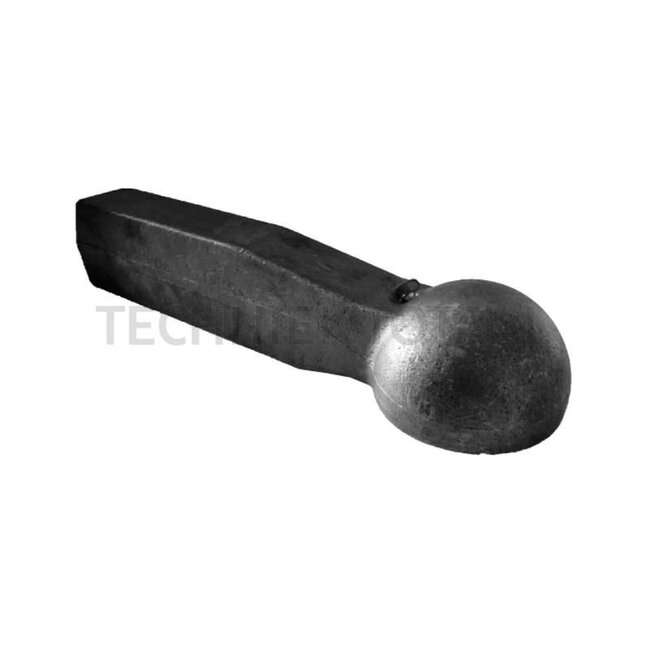

Spherical cap
D-value (kN): 76,3
Load capacity (kg): 2000
Colour: Bare metal
Lock: ball 80
Description: This product is a spherical cap suitable for connection with a hitch ball D: 80 mm (ISO 24347). The areas of application include use on agricultural or forestry trailers. Product advantages: forged designed for the highest loads optimum clearance for angular movement of up to 36° grooves on the inside ensure optimum distribution of lubricating grease
Length (mm): 375
Assembly notes: The ball hitch can be installed directly on the frame parts or on the trailer towing device by means of a welded connection. Welding must be carried out by the chassis or drawbar manufacturer in accordance with the applicable regulations and checked when these vehicles or vehicle parts are accepted. The welded connection shown as an example in the installation sketch is designed to meet the strength requirements. When producing the welded connection, it should be noted that the ball hitch shaft must be preheated to a temperature of 250 °C before welding begins, and longitudinal and face fillet welds on the coupling point side must be welded in one operation to avoid notch effects. The requirements of quality class B according to DIN EN 25817 apply to the weld seam quality.
