BOSCH Start switch 12 V/24 V, safety lock - Case IH 955, 956, 1055, 1056 - 3221154R91, 1397580028, 342316003, 0342316003
€137,77
€117,11Incl. VAT
In stock
€96,79
Excl. VAT
To fit as: Case IH 955, 956, 1055, 1056
Read more.
60.000+ technical products
Worldwide shipping*
30-day return policy
Rating 4,6/5 (390 reviews)
Product description

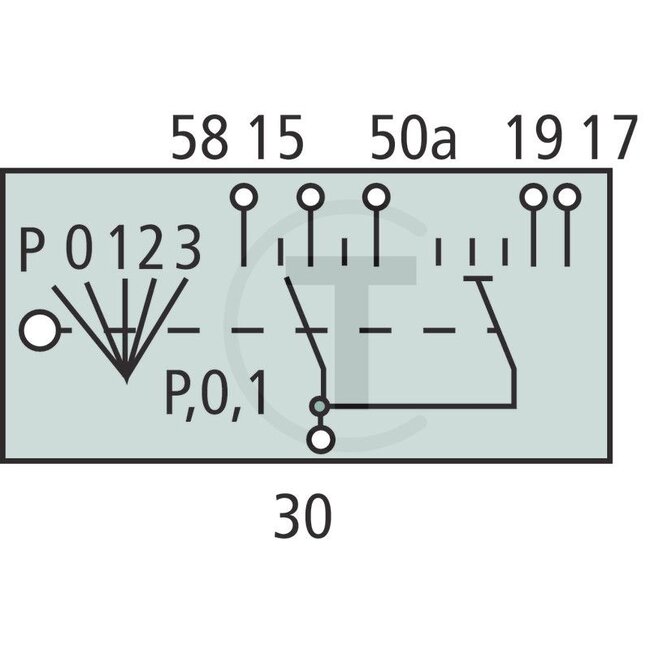

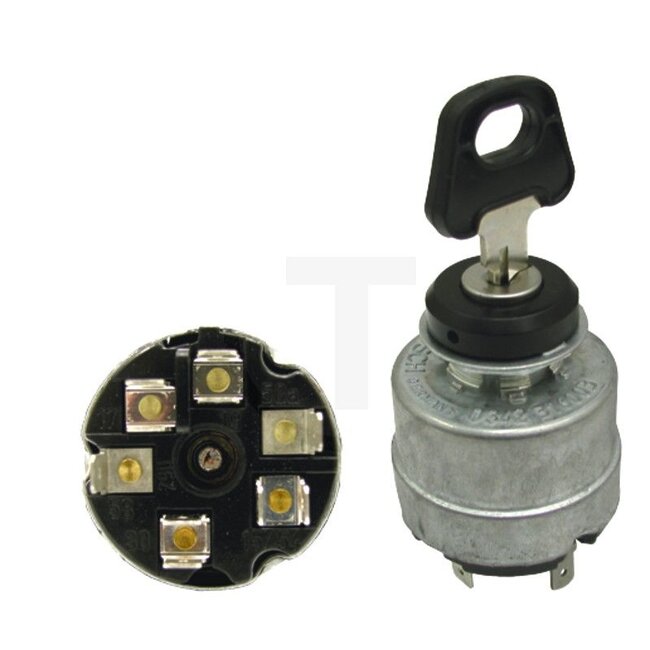

Version: With 2 moulded keys, safety lock, key can only be removed in the off position. Locking no. K80 Blade terminals, power rating 13 A 24 V continuous operation terminal 15 33 A / 24 V terminal 17, 19. Duty cycle 2 min. 18 A / 12 V terminal 50a, 9 A / 24 V terminal 50a. Switch positions: P: parking light O: off 1: on 2: preheat 3: start Fixing: with round nut M22 x 1 Mounting opening: Ø 22.5 mm, up to wall thickness 6 mm.
To fit as:
Case IH / IHC / International 955, 956, 1055, 1056
To fit as:
Case IH (342316003, 0342316003, 3221154R91, 1397580028); Serie C-Familie: 955, 956, 1055, 1056
Still (342316003, 0342316003, 0518297); Diverse, Diverse
Lamborghini (342316003, 0342316003, 0.015.0485.4); Serie Spire: Spire 95, Spire F 95, Spire S 95, Spire V 95, Serie Spire VRT: Spire 95 VRT, Spire F 95 VRT, Spire S 95 VRT, Spire V 95 VRT
