€85,86
€73,32 Incl. VAT
In stock
€60,60 Excl. VAT

Version: 12 V/24 V, safety lock, key can only be removed in the off position., Locking no. E30, Blade terminals, power rating 13 A 24 V continuous operation terminal 15 33 A / 24 V terminal 17, 19. Duty cycle 2 min. 18 A / 12 V terminal 50a, 9 A / 24 V te Read more.

  • 50.000+ technical products
  • Worldwide shipping*
  • 30-day return policy
  • Rating 4.7/5 (420 reviews)


Product description

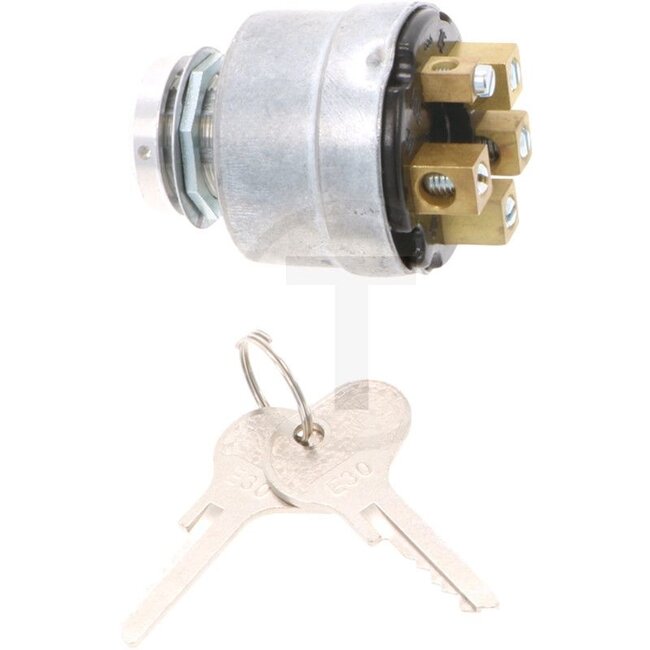

Start switch With 2 keys

  • Version: 12 V/24 V, safety lock,
    key can only be removed in the off position.
    Locking no. E30

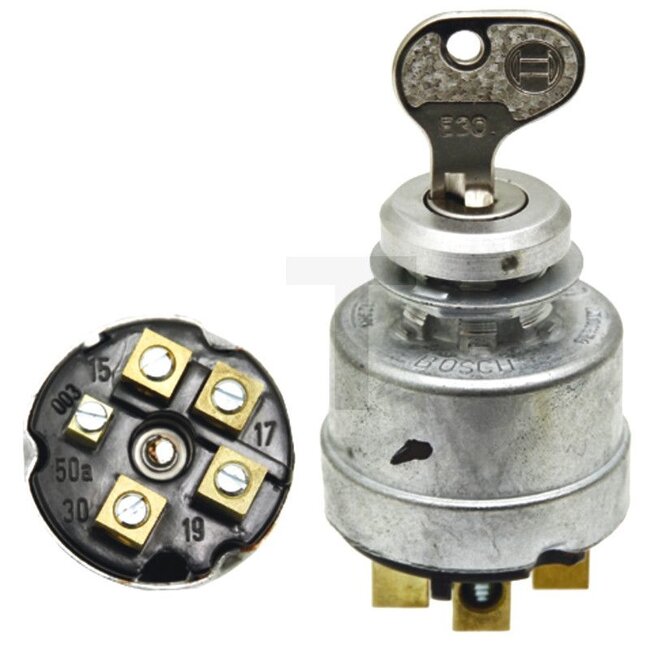

    Blade terminals, power rating 13 A 24 V continuous operation terminal 15 33 A / 24 V terminal 17, 19. Duty cycle 2 min. 18 A / 12 V terminal 50a, 9 A / 24 V terminal 50a.

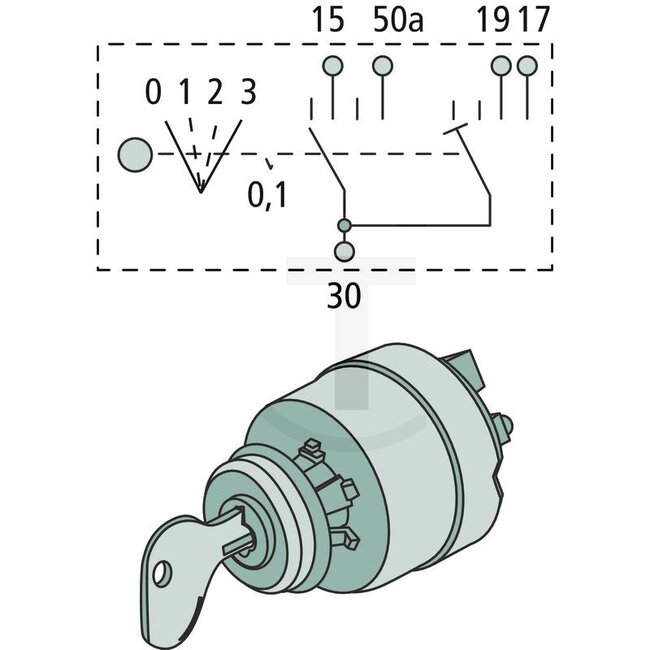

    Switch positions:
    O: off
    1: on
    2: preheat
    3: start
    Fixing: with round nut M22 x 1
    Mounting opening: Ø 22.5 mm, up to wall thickness 6 mm.
  • Connection: 5x screw connection
  • Mounting Ø (mm): 22
  • Total length (mm): 60
  • Switching stages: 4
  • Locking number: E30
  • Anti-restart: Yes
  • Spare key: 507014683

  • Passend voor:

  • Still: 342315001, 0342315001, 0502679, Diverse, Diverse Schlösser, RX20, RX20-14 (6210-6217), RX20-15 (6210-6217), RX20-16 (6210-6217), RX20-18 (6210-6217), RX20-20 (6210-6217), RX50, RX50-10 (5051-5055), RX50-13 (5051-5055), RX50-15 (5051-5055), RX50-16 (5051-5055), RX60, RX60-16 6311, 6313, 6315), RX60-18 (6311, 6313, 6315), RX60-20 (6311, 6313, 6315), RX60-25 (6321-6325), RX60-25 (6345-6348, 6353-6356), RX60-25/600 (6321-6325), RX60-25/600 (6345-6348, 6353-6356), RX60-25L/600 (6321-6325), RX60-25L/600 (6345-6348, 6353-6356), RX60-30 (6321-6325), RX60-30 (6345-6348, 6353-6356), RX60-30/600 (6321-6325), RX60-30/600 (6345-6348, 6353-6356), RX60-30L/600 (6321-6325), RX60-30L/600 (6345-6348, 6353-6356), RX60-35 (6321-6325), RX60-35 (6345-6348, 6353-6356), RX60-40 (6327-6329), RX60-45 (6327-6329), RX60-50 (6327-6329), RX60-50/600 (6327-6329)
  • Jungheinrich: 342315001, 0342315001, 00022678, 50152310, 14467110, Diverse, Diverse
  • Linde: 342315001, 0342315001, 0009730201, H, H50 (320) 01/1974 - 08/1980, H50 (320) 01/1987 - 03/1996, H50 (320) 09/1980 - 12/1986, H60 (320) 01/1974 - 08/1980, H60 (320) 01/1987 - 03/1996, H60 (320) 09/1980 - 12/1986, H70 (320) 01/1974 - 08/1980, H70 (320) 01/1987 - 03/1996, H70 (320) 09/1980 - 12/1986, H80 (320) 01/1987 - 03/1996
  • Further information

    Article number
    2500342315001
    EAN Code
    3165141934847
