• Wire Ø (mm): 1
• Welding positions: PA, PB, PC, PE, PF, PG
• Coil weight (kg): 15

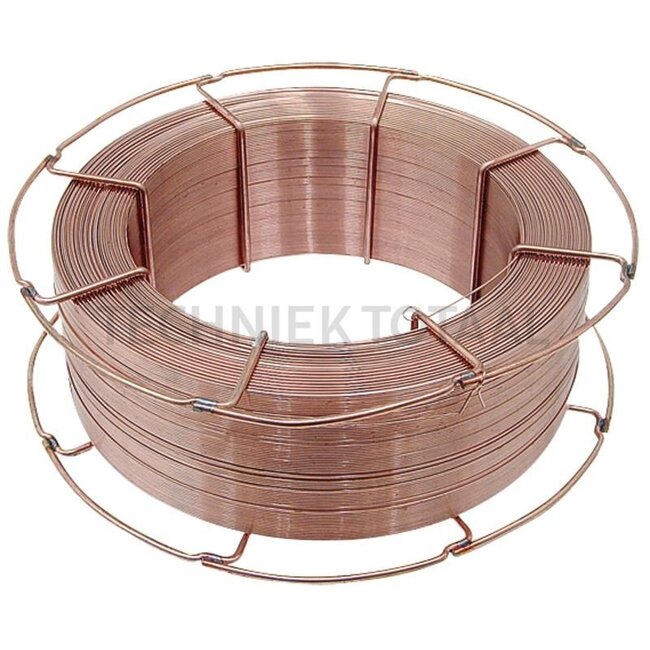

Copper-plated wire electrode universally applicable in tank, boiler and construction building. Largely spatter-free material transition under mixed gases and CO2. Thanks to the high current carrying capacity, the best conditions are achieved when welding thick sheets. For vertical down welds use small wire diameter. The non-copper-plated version of this solid wire electrode (of equally high quality) is also available, and has been designed to ensure minimal spatter and the best feeding properties even at high wire feed speeds. These versions are used in particular for automated welding operations.
Standard: EN ISO 14341-A: G4Si1, G46 4 M21 4Si1, G 46 4 C1 4Si1, EN ISO 14341-B: G 55A 4 U M21 S6, G 55A 4 U C1 S6
Approvals: TÜV-D, DB, ABS, DNV, GL, LR, SEPROZ, CE, NAKS
Inert gases: Argon + 15 - 25% CO² or 100% CO²
Materials: S235J2G3 - S355J2G3, E360, P235T1-P355T1, P235G1TH, P255G1TH, P235GH, P265GH, P295GH, P310GH, P255NH, S235JRS1 - S235J4S, S355G1S - S355G3S, S255N - S460N, P255NH-P460NH, GE200-GE260, ASTM A27 u. A36 Gr. all, A106 Gr. A, B A214, A 242 Gr. 1-5, A266 Gr. 1, 2, 4, A283 Gr. A, B, C, D, A285 Gr. A, B, C, A299 Gr. A, B, A328, A366, A515 Gr. 60, 65, 70, A516 Gr. 55, A556 Gr. B2A, A570 Gr. 30, 33, 36, 40, 45, A572 Gr. 42, 50, A606 Gr. all, A607 Gr. 45, A656 Gr. 50, 60, A668 Gr.A, B, A907 Gr. 30, 33, 36, 40, A841, A851 Gr. 1, 2, A935 Gr. 45, A936 Gr. 50
